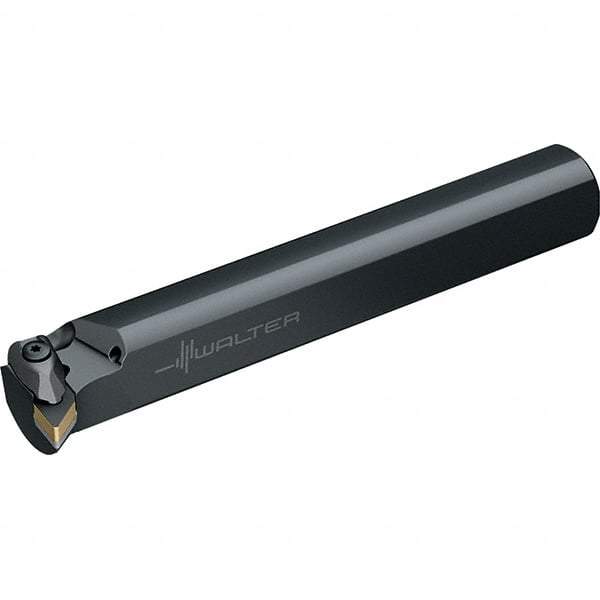

Walter - 1.201" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-DDUN Indexable Boring Bar - DN.. 1104.., DN.. 33.. Insert, Clamp Holding Method
Item #: 53078739
Brand: Walter
Model #: 6351538
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DDUN |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 1.2010 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | DN.. 1104..; DN.. 33.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.6250 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | DNGG 110402-SR; DNGG 110404-SR; DNGP 33.007 SR; DNGP 331 SR; DNMA 110404; DNMA 110408; DNMA 331; DNMA 332; DNMG 110402-FP5; DNMG 110404-FP5; DNMG 110404-MP3; DNMG 110404-MP5; DNMG 110404-NF4; DNMG 110404-NM4; DNMG 110404-NM5; DNMG 110404-NMT; DNMG 110408- |
| Toolholder Material | Steel |
