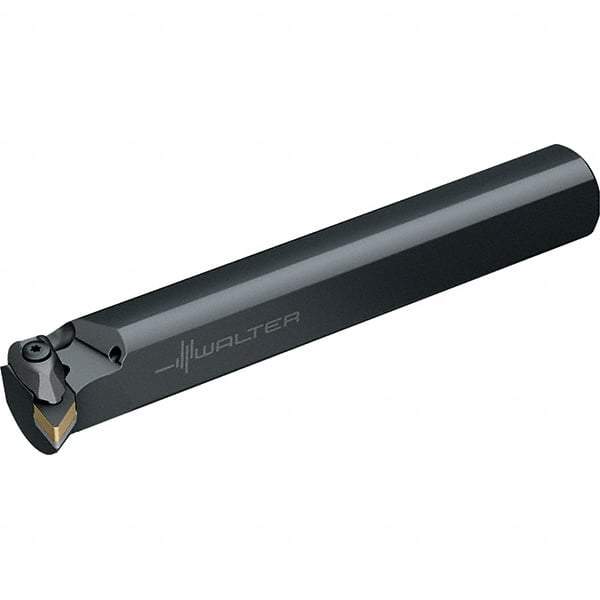

Walter - 2.673" Min Bore Diam, 14" OAL, 2" Shank Diam, A-DDUN Indexable Boring Bar - DN.. 1504.., DN.. 43.. Insert, Clamp Holding Method
Item #: 53078713
Brand: Walter
Model #: 6351550
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DDUN |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 2.6730 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | DN.. 1504..; DN.. 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 1.5000 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | DNGA 150412; DNGA 433-T7; DNGG 150401-SR; DNGG 150402-SR; DNGG 150404-NFT; DNGG 150404-SR; DNGG 150408-NFT; DNGG 150408-SR; DNGG 431-NFT; DNGG 432-NFT; DNGM 150408-F; DNGM 432-F; DNGP 43.004 SR; DNGP 43.007 SR; DNGP 431 SR; DNGP 432 SR; DNMA 150408; DNMA |
| Toolholder Material | Steel |
