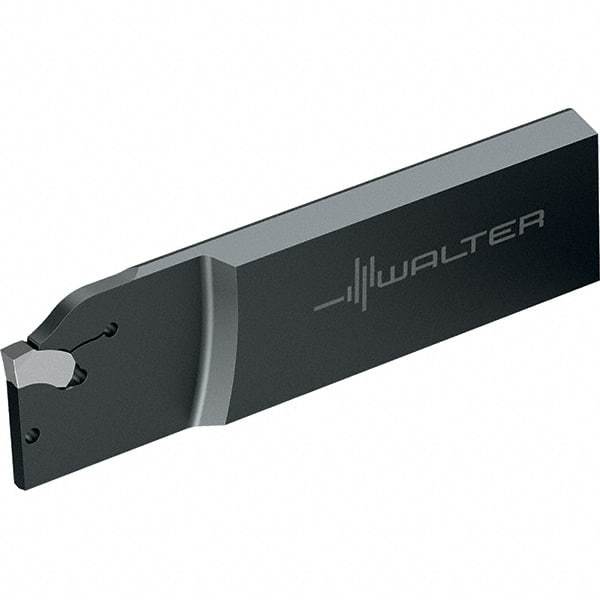

Walter - 1.2598" Blade Height, 4.3307" OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - 33mm Max Depth of Cut, G2042 Blade
Item #: 53078267
Brand: Walter
Model #: 6424661
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | G2042 |
| Insert Style | SX-4.. |
| Insert Width (mm) | 4.00 |
| Insert Width (Decimal Inch) | 0.1575 |
| Tool Block/Toolholder Style | SBN |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (mm) | 33.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2992 |
| Cutting Height (mm) | 24.60 |
| Cutting Height (Decimal Inch) | 0.9685 |
| Complete Insert Compatibility | SX-4E400N02-CE4; SX-4E400N02-CF5 |
| Complete Tool Block/Toolholder Style Compatibility | SBN12-26K-E; SBN12-26KS-E; SBN16-32-K-E; SBN16-32KS-E; SBN2020-26-K; SBN20-32K-E; SBN20-32KS-E; SBN20-46K-E; SBN2520-32-K; SBN3229-32-K; SBN3229-46-K; SBN4037-46-K |
