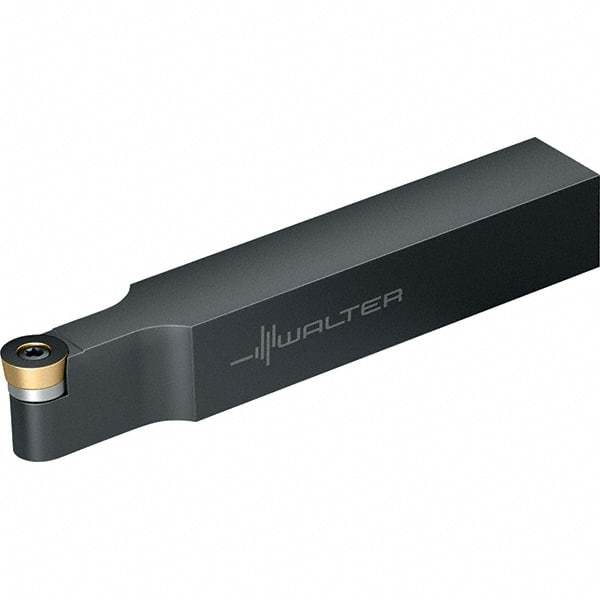

Walter - SRDC, Neutral Cut, 3/4" Shank Height x 3/4" Shank Width, Neutral Rake Indexable Turning Toolholder - 4-1/2" OAL, RC.T 32.5.. Insert Compatibility, Series Walter Turn
Item #: 53061404
Brand: Walter
Model #: 6347301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SRDC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | RC.T 32.5.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5630 |
| Head Length (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
