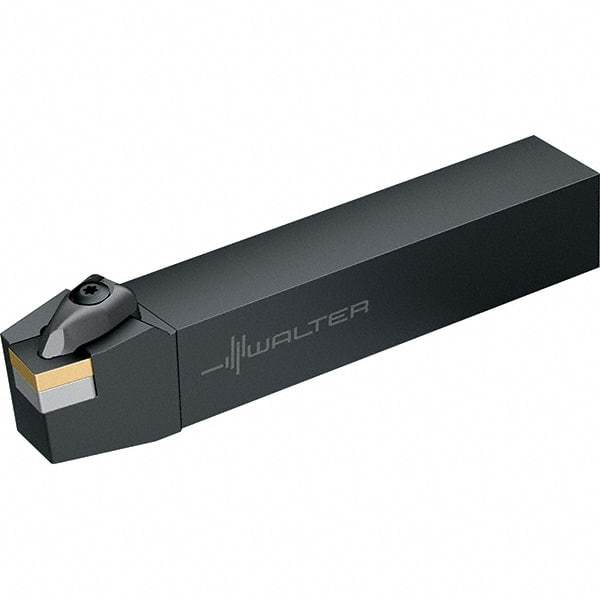

Walter - DCBN, Left Hand Cut, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, CN.. 1906.. Insert Compatibility, Series Walter Turn
Item #: 53061164
Brand: Walter
Model #: 5673879
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCBN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | CN.. 1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 27.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0630 |
| Head Length (mm) | 46.10 |
| Head Length (Decimal Inch) | 1.8150 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Width (mm) | 19.30 |
| Insert Width (Decimal Inch) | 0.7598 |
