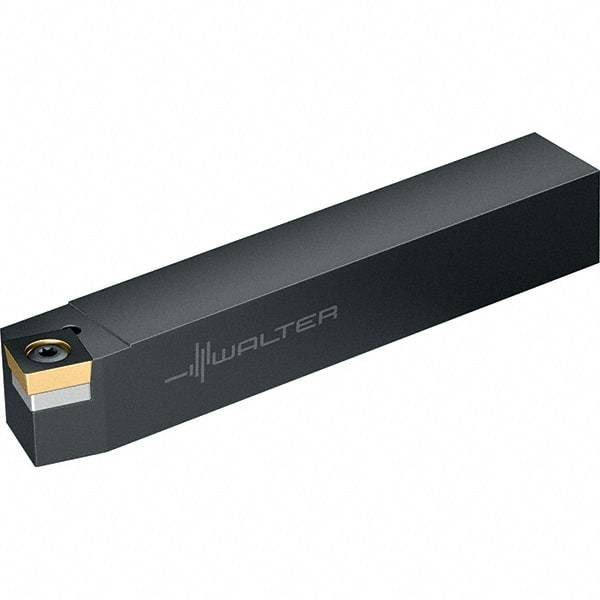

Walter - SSRC, Right Hand Cut, 12mm Shank Height x 12mm Shank Width, Indexable Turning Toolholder - 80mm OAL, Series Walter Turn
Item #: 53060869
Brand: Walter
Model #: 5335847
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SSRC |
| Series | Walter Turn |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 14.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5512 |
| Head Length (mm) | 15.50 |
| Head Length (Decimal Inch) | 0.6102 |
| Insert Width (mm) | 9.00 |
| Insert Width (Decimal Inch) | 0.3543 |
