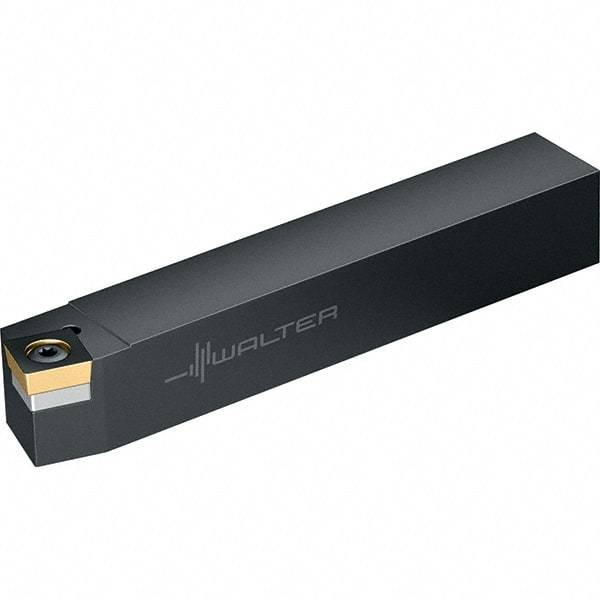

Walter - SSBC, Right Hand Cut, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 100mm OAL, SC..09T3.. Insert Compatibility, Series Walter Turn
Item #: 53060455
Brand: Walter
Model #: 5327614
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SSBC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | SC..09T3.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 13.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5118 |
| Head Length (mm) | 15.50 |
| Head Length (Decimal Inch) | 0.6102 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
