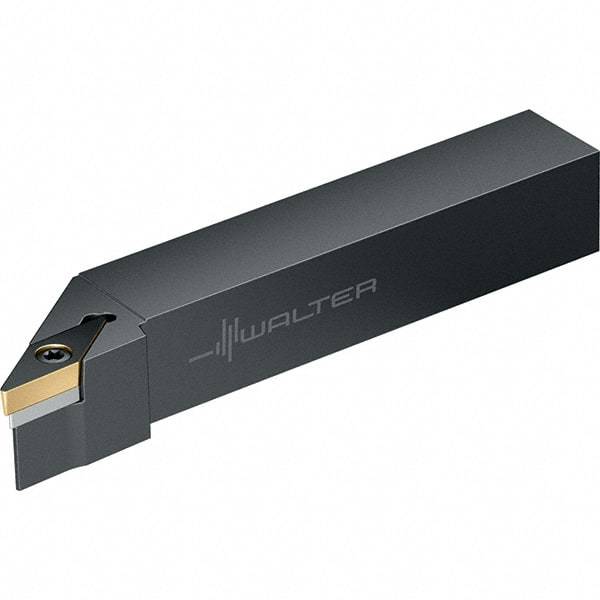

Walter - SVJB, Right Hand Cut, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, VB/C.. 1103.. Insert Compatibility, Series Walter Turn
Item #: 53060299
Brand: Walter
Model #: 5327109
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SVJB |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | VB/C.. 1103.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 21.20 |
| Head Length (Decimal Inch) | 0.8346 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Width (mm) | 11.00 |
| Insert Width (Decimal Inch) | 0.4331 |
