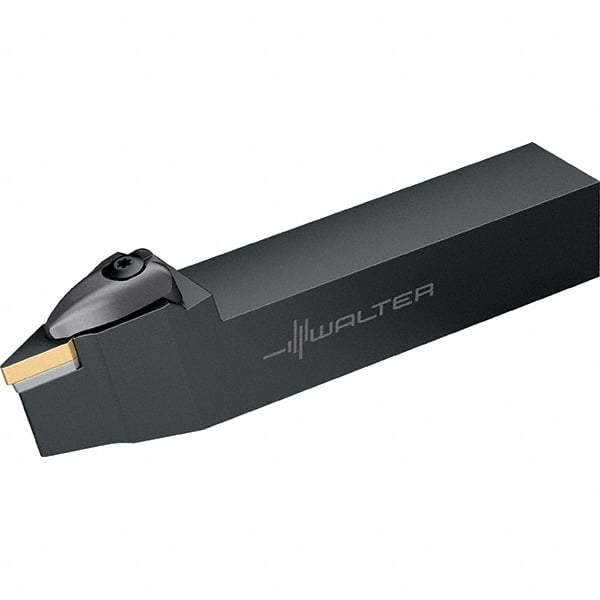

Walter - DVVN, Neutral Cut, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 4-1/2" OAL, VN..1604.., VN..33.. Insert Compatibility, Series Walter Turn
Item #: 53060091
Brand: Walter
Model #: 5097623
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DVVN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | VN..1604..; VN..33.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3980 |
| Head Length (Decimal Inch) | 1.8800 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (mm) | 16.51 |
| Insert Width (Decimal Inch) | 0.6500 |
