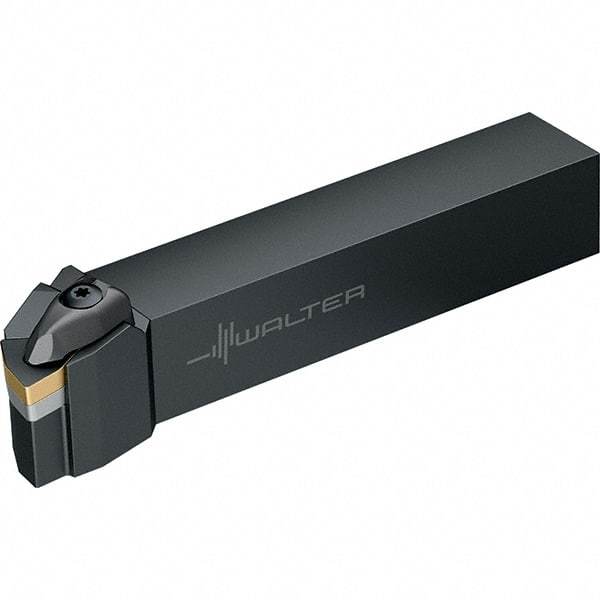

Walter - DWLN, Left Hand Cut, 3/4" Shank Height x 3/4" Shank Width, Negative Rake Indexable Turning Toolholder - 5" OAL, WN..0804.., WN..43.. Insert Compatibility, Series Walter Turn
Item #: 53059945
Brand: Walter
Model #: 5097596
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DWLN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.0000 |
| Insert Compatibility | WN..0804..; WN..43.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 1.3780 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Width (Decimal Inch) | 0.3420 |
