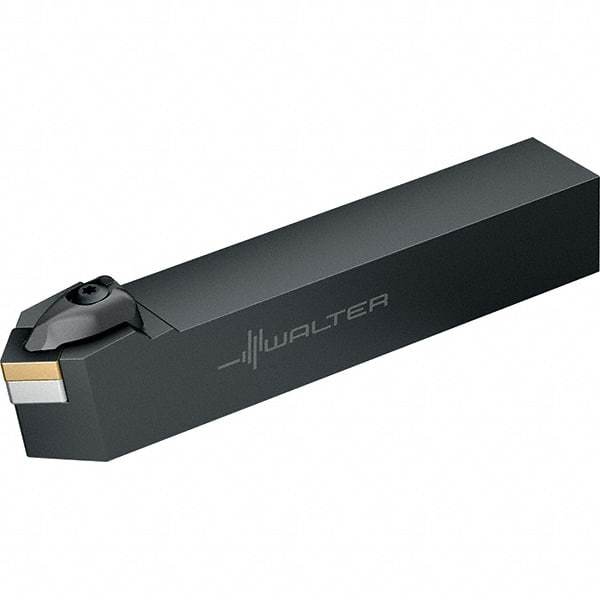

Walter - DSDN, Neutral Cut, 31.75mm Shank Height x 31.75mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, SN..1204.., SN..43.. Insert Compatibility, Series Walter Turn
Item #: 53059812
Brand: Walter
Model #: 5097558
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DSDN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | SN..1204..; SN..43.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 16.21 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6380 |
| Head Length (mm) | 36.83 |
| Head Length (Decimal Inch) | 1.4500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
