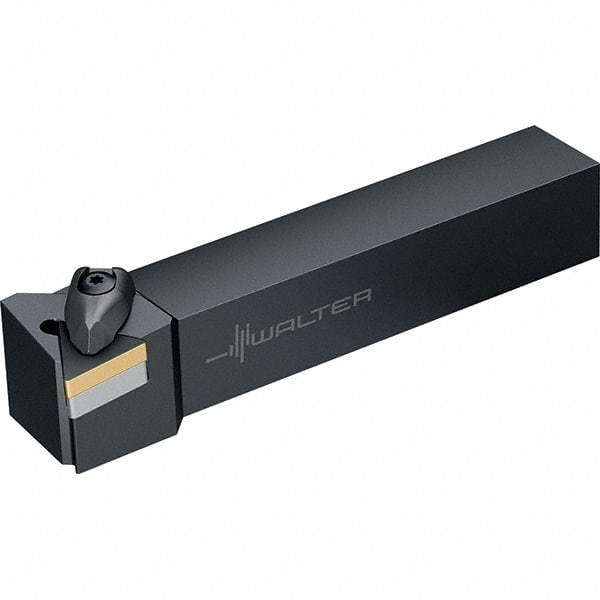

Walter - DTGN, Left Hand Cut, 19.05mm Shank Height x 19.05mm Shank Width, Negative Rake Indexable Turning Toolholder - 114.3mm OAL, TN..1604.., TN..33.. Insert Compatibility, Series Walter Turn
Item #: 53059721
Brand: Walter
Model #: 5097530
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DTGN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 19.05 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | TN..1604..; TN..33.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 25.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (mm) | 24.64 |
| Head Length (Decimal Inch) | 0.9700 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (Decimal Inch) | 0.6500 |
