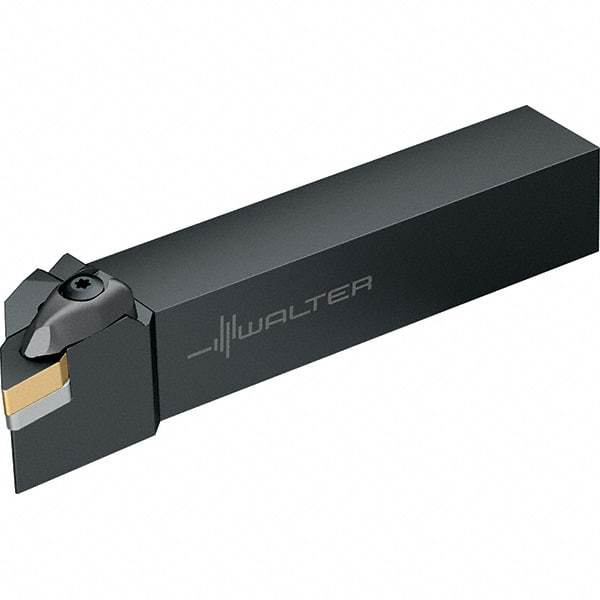

Walter - DDJN, Right Hand Cut, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, DN..1506.. Insert Compatibility, Series Walter Turn
Item #: 53059549
Brand: Walter
Model #: 5042250
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DDJN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | DN..1506.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 39.50 |
| Head Length (Decimal Inch) | 1.5551 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Width (mm) | 15.50 |
| Insert Width (Decimal Inch) | 0.6102 |
