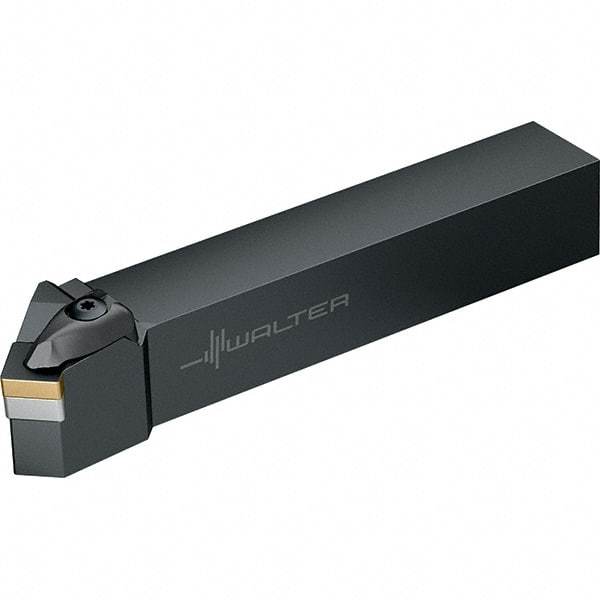

Walter - DSSN, Right Hand Cut, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 182.5mm OAL, SN..1906.. Insert Compatibility, Series Walter Turn
Item #: 53059481
Brand: Walter
Model #: 5042236
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 182.50 |
| Overall Length (Decimal Inch) | 7.1850 |
| Insert Compatibility | SN..1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 27.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0827 |
| Head Length (mm) | 49.50 |
| Head Length (Decimal Inch) | 1.9488 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
