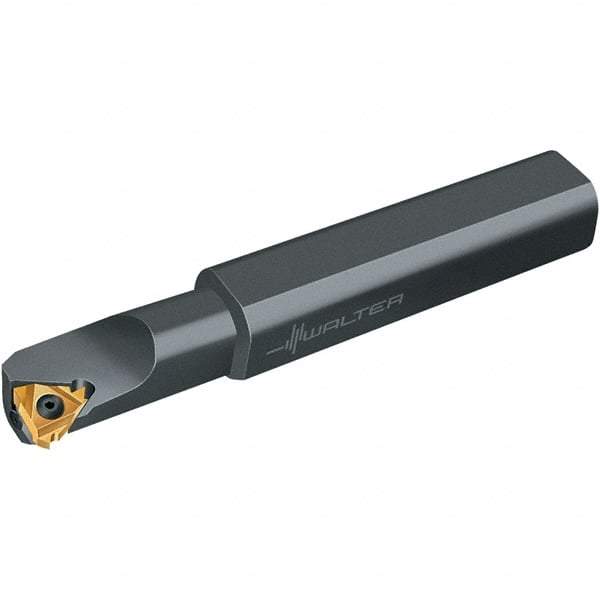

Walter - Internal Thread, Right Hand Cut, 16mm Shank Width x 15.2mm Shank Height Indexable Threading Toolholder - 150mm OAL, NTSI..-16 Insert Compatibility, S..-NTS-I Toolholder - Benchmark Tooling

Walter - Internal Thread, Right Hand Cut, 16mm Shank Width x 15.2mm Shank Height Indexable Threading Toolholder - 150mm OAL, NTSI..-16 Insert Compatibility, S..-NTS-I Toolholder


Item #: 53058392
Brand: Walter
Model #: 5011601
Exact Tooling IR#: 04

Product Specifications
Thread Type Internal
Hand of Holder Right Hand
Shank Width/Diameter (mm) 16.00
Shank Width/Diameter (Decimal Inch) 0.6299
Shank Height (mm) 15.20
Shank Height (Decimal Inch) 0.5984
Overall Length (Decimal Inch) 5.9055
Overall Length (mm) 150.00
Insert Compatibility NTSI..-16
Toolholder Style S..-NTS-I
Through Coolant No
Multi-Use Tool No
Insert Holding Method Screw
Center to Cutting Edge (mm) 11.30
Center to Cutting Edge (Decimal Inch) 0.4449
Head Length (mm) 32.00
Head Length (Decimal Inch) 1.2598
Shank Length (Decimal Inch) 4.6457
Minimum Bore Diameter (Decimal Inch) 0.7874
Insert Inscribed Circle (Decimal Inch) 0.3750
$155.68
