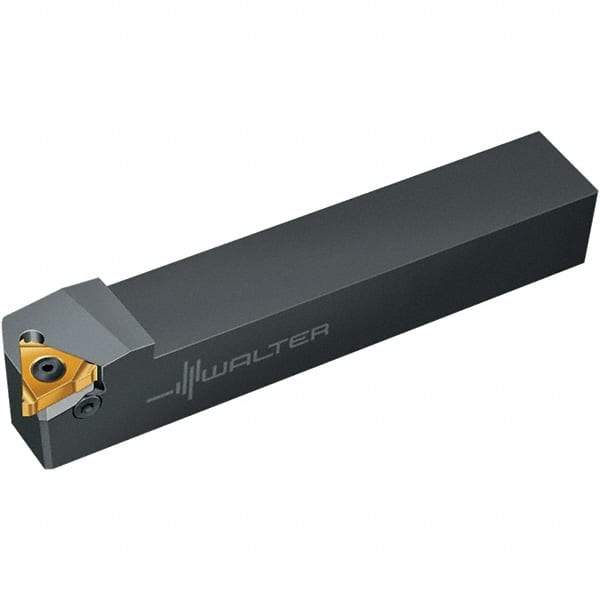

Walter - External Thread, Right Hand Cut, 25mm Shank Width x 25mm Shank Height Indexable Threading Toolholder - 153.6mm OAL, NTSE..-16 Insert Compatibility, NTS-SE Toolholder
Item #: 53058335
Brand: Walter
Model #: 5011567
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 6.0472 |
| Overall Length (mm) | 153.60 |
| Insert Compatibility | NTSE..-16 |
| Toolholder Style | NTS-SE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Shank Length (Decimal Inch) | 4.8661 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
