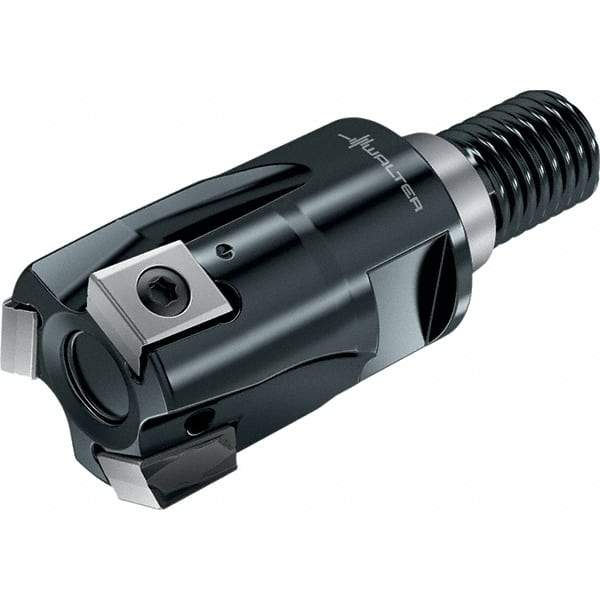

Walter - 25mm Cut Diam, 8mm Max Depth of Cut, Indexable Square Shoulder End Mill - Multiple Insert Styles, T22 Modular Connection, 90° Lead Angle, Through Coolant
Item #: 53057360
Brand: Walter
Model #: 6190498
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Modular Connection |
| Modular Connection Size | T22 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | F5041 |
| Number of Flutes | 3 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Insert Compatibility | LNHU 090404R-L55T; LNHU 090404R-L85T; LNHU 090408R-L55T; LNHU 090412R-L55T; LNHU 090416R-L55T; LNHU 090420R-L55T |
| Shank Length (Decimal Inch) | 0.9055 |
| Shank Length (mm) | 23.00 |
| Maximum RPM | 10000 |
