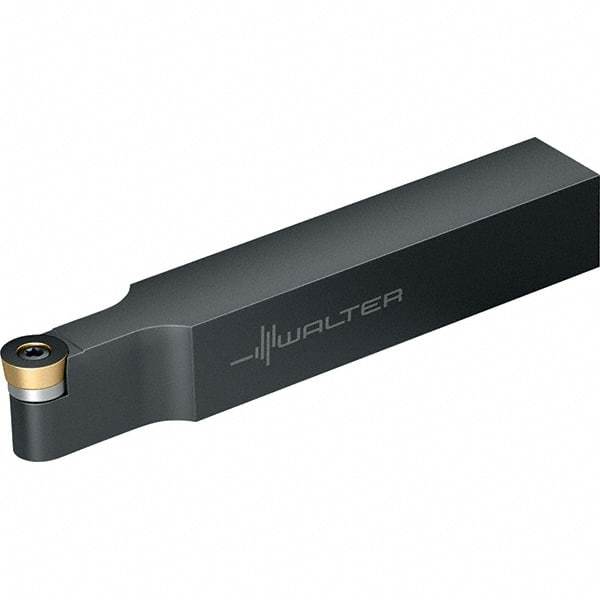

Walter - SRDC, Neutral Cut, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 80mm OAL, RC.T 0602.. Insert Compatibility, Series Walter Turn
Item #: 53051538
Brand: Walter
Model #: 5008050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SRDC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Compatibility | RC.T 0602.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 6.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2362 |
| Head Length (mm) | 12.00 |
| Head Length (Decimal Inch) | 0.4724 |
| Insert Inscribed Circle (Decimal Inch) | 0.2362 |
