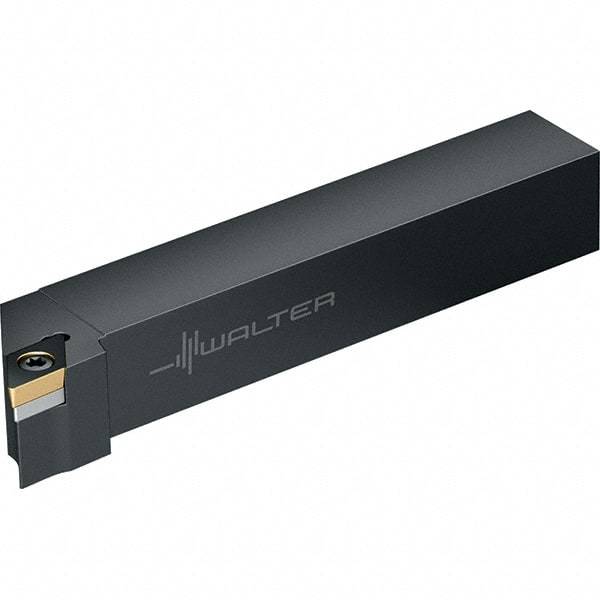

Walter - SDJC, Right Hand Cut, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 80mm OAL, DC.. 0702.. Insert Compatibility, Series Walter Turn
Item #: 53051512
Brand: Walter
Model #: 5008068
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SDJC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Compatibility | DC.. 0702.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 15.50 |
| Head Length (Decimal Inch) | 0.6102 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Width (mm) | 7.75 |
| Insert Width (Decimal Inch) | 0.3051 |
