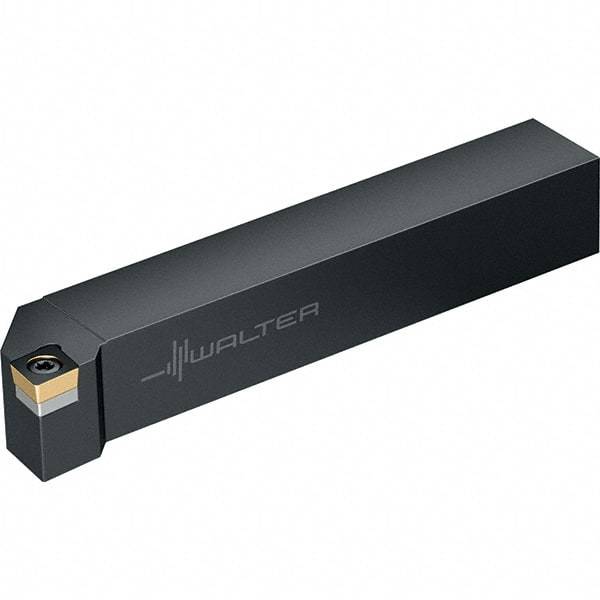

Walter - SCLC, Right Hand Cut, 1/2" Shank Height x 1/2" Shank Width, Neutral Rake Indexable Turning Toolholder - 3-1/2" OAL, CC..09T3.., CC..32.5.. Insert Compatibility, Series Walter Turn
Item #: 53051454
Brand: Walter
Model #: 5028446
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SCLC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.5000 |
| Insert Compatibility | CC..09T3..; CC..32.5.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 0.3900 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (mm) | 9.68 |
| Insert Width (Decimal Inch) | 0.3810 |
