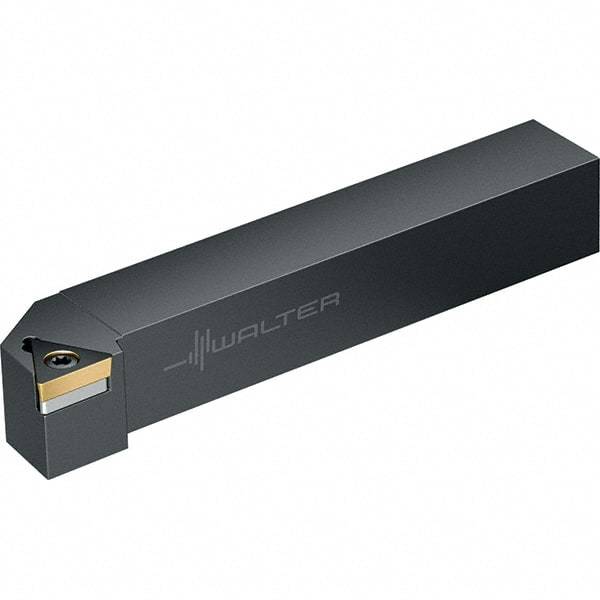

Walter - STGC, Left Hand Cut, 3/8" Shank Height x 3/8" Shank Width, Neutral Rake Indexable Turning Toolholder - 2-1/2" OAL, TC..1102.., TC..21.5.. Insert Compatibility, Series Walter Turn
Item #: 53051371
Brand: Walter
Model #: 5028488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | STGC |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 0.3750 |
| Shank Height (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.5000 |
| Insert Compatibility | TC..1102..; TC..21.5.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Length (Decimal Inch) | 0.5430 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Width (mm) | 11.00 |
| Insert Width (Decimal Inch) | 0.4330 |
