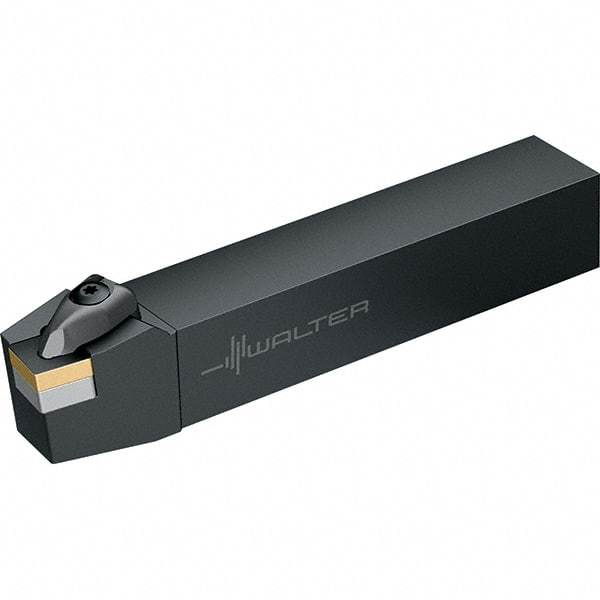

Walter - DCRN, Right Hand Cut, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, CN.. 1606.., CN.. 54.. Insert Compatibility, Series Walter Turn
Item #: 53050761
Brand: Walter
Model #: 5097538
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DCRN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CN.. 1606..; CN.. 54.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2910 |
| Head Length (Decimal Inch) | 1.6400 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Width (Decimal Inch) | 0.6340 |
