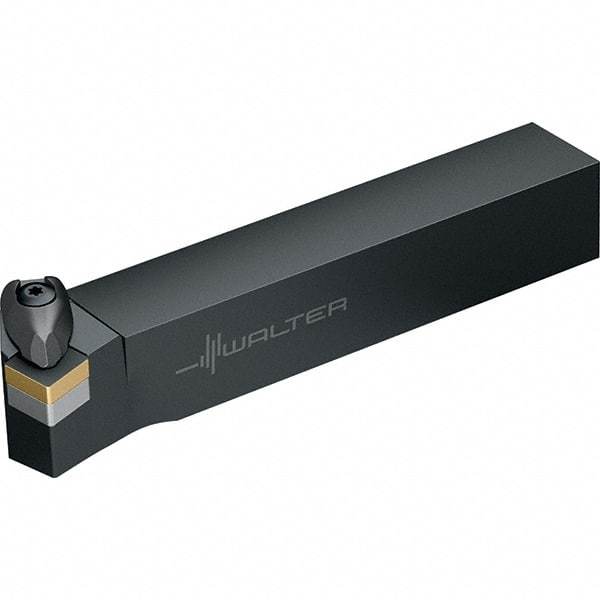

Walter - DSKN, Left Hand Cut, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, SN..1506.. Insert Compatibility, Series Walter Turn
Item #: 53050423
Brand: Walter
Model #: 5204630
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DSKN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | SN..1506.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 28.90 |
| Head Length (Decimal Inch) | 1.1378 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
