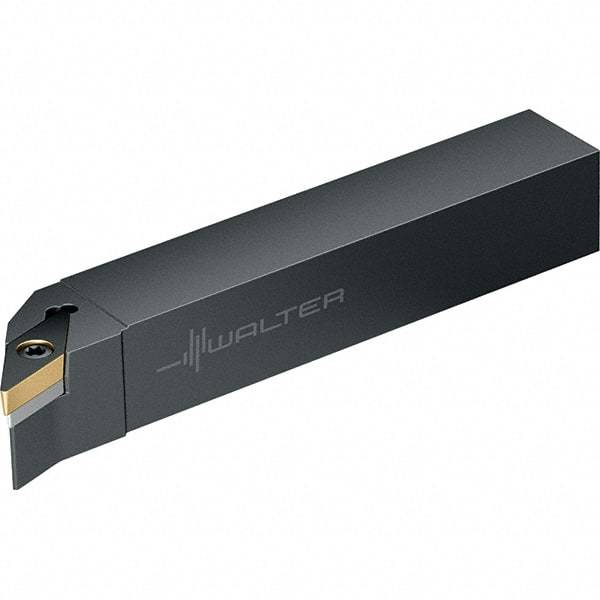

Walter - SVHB, Left Hand Cut, 32mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 170mm OAL, VB/C.. 1604.. Insert Compatibility, Series Walter Turn
Item #: 53050068
Brand: Walter
Model #: 5327639
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SVHB |
| Rake | Neutral |
| Series | Walter Turn |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | VB/C.. 1604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 27.60 |
| Head Length (Decimal Inch) | 1.0866 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (mm) | 16.60 |
| Insert Width (Decimal Inch) | 0.6535 |
