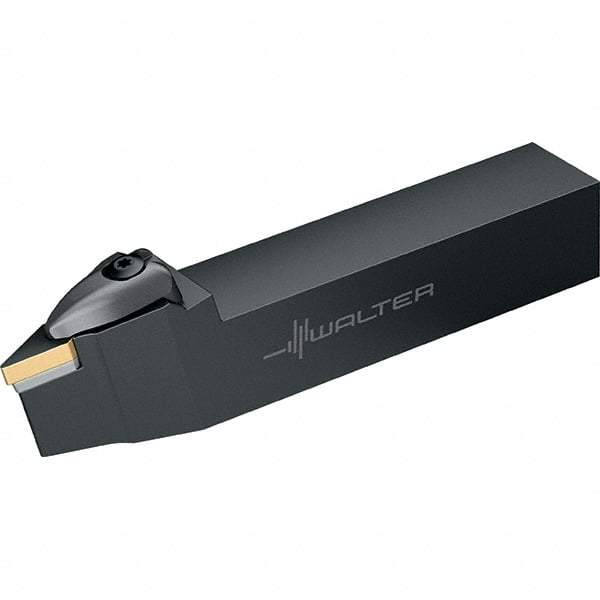

Walter - DVVN, Neutral Cut, 32mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, VN..1604.. Insert Compatibility, Series Walter Turn
Item #: 53049391
Brand: Walter
Model #: 5673899
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DVVN |
| Rake | Negative |
| Series | Walter Turn |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | VN..1604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 13.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5157 |
| Head Length (mm) | 47.80 |
| Head Length (Decimal Inch) | 1.8819 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Width (mm) | 16.50 |
| Insert Width (Decimal Inch) | 0.6496 |
