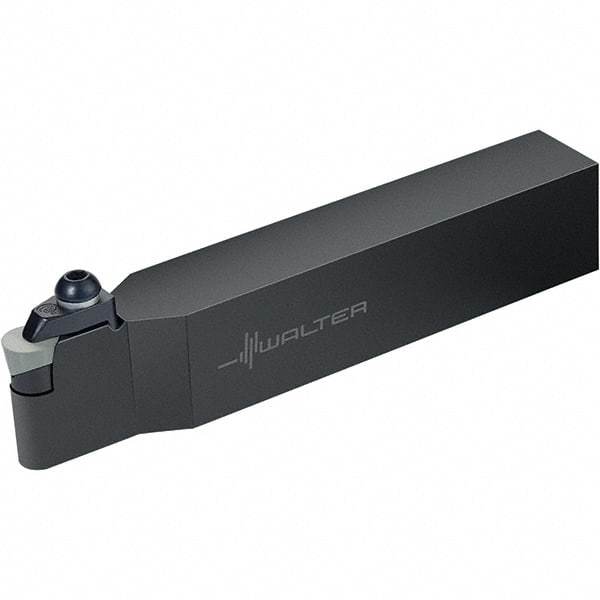

Walter - CRDC, Neutral Cut, 32mm Shank Height x 25mm Shank Width, Indexable Turning Toolholder - 170mm OAL, RC/P..0907.. Insert Compatibility, Series Walter Turn
Item #: 53049250
Brand: Walter
Model #: 6296390
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CRDC |
| Series | Walter Turn |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | RC/P..0907.. |
| Multi-Use Tool | No |
| Insert Holding Method | Top Clamping |
| Back of Bar to Cutting Edge (mm) | 17.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6693 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
