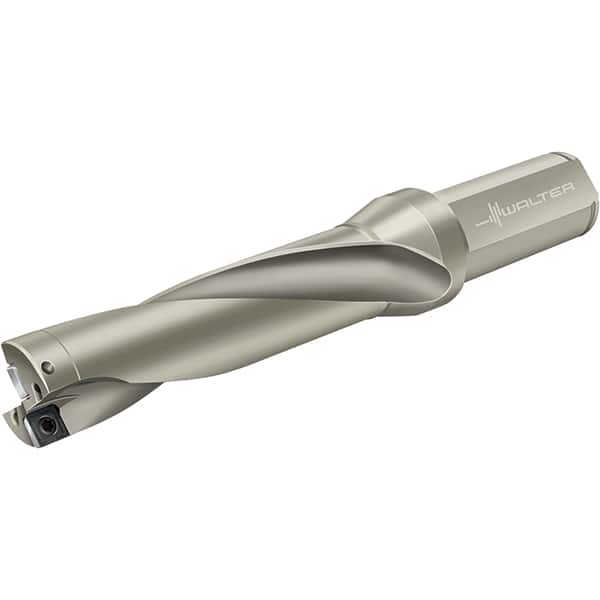

Walter - 220mm Max Drill Depth, 4xD, 55mm Drill Diam, Indexable Insert Drill - 2 Inserts, Flange Shank, 40mm Shank Diam
Item #: 53045597
Brand: Walter
Model #: 5682330
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | MT40 |
| Thread Standard | Acme |
| Threads Per Inch | 4 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Coolant Through | Yes |
| Body Length (Decimal Inch) | 10.2362 |
| Drill Style | B4214 |
| Shank Type | Flange |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Series | Xtra-tec |
| Overall Length/Projection (mm) | 330.00 |
| Overall Length/Projection (Decimal Inch) | 12.9921 |
| Number of Drill Inserts | 2 |
| Maximum Drill Depth (mm) | 220.00 |
| Maximum Drill Depth (Decimal Inch) | 8.6614 |
| Insert Compatibility | P4840C-.R-E67; P4841C-.R-A57; P4841C-.R-E57 |
| Insert Size (Decimal Inch) | 0.1790; 0.1930; 0.2170; 0.2340; 0.2560; 0.2760; 0.3070; 0.3310; 0.3760; 0.4050; 0.4630; 0.4820; 0.5520; 0.5780; 0.6500; 0.6890 |
| Drill Diameter (mm) | 55.00 |
| Drill Diameter (Decimal Inch) | 2.1654 |
| Drill Depth by Diameter Ratio | 4xD |
| Cutting Direction | Right Hand |
| Collar Diameter (mm) | 50.00 |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Body Length (mm) | 260.00 |
