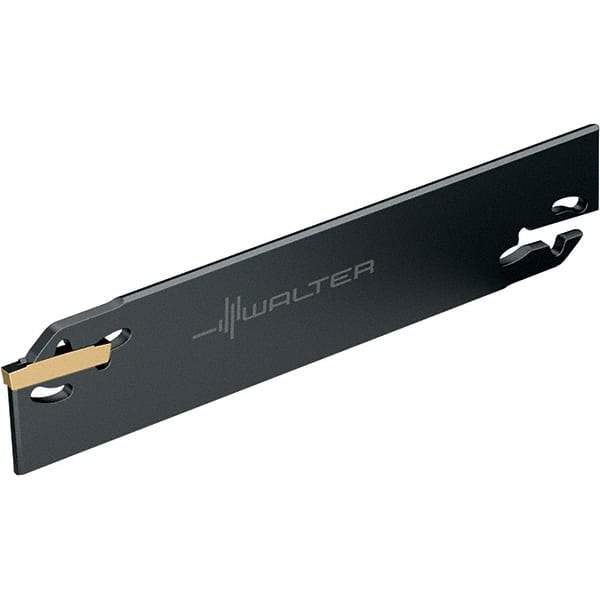

Walter - 1.2598" Blade Height, 5.878" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - 60mm Max Depth of Cut, G1042 Blade
Item #: 53042636
Brand: Walter
Model #: 5887960
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Overall Length (mm) | 149.30 |
| Blade Overall Length (Decimal Inch) | 5.8780 |
| Blade Style | G1042 |
| Insert Style | GX24-3E5/F5.. |
| Insert Width (mm) | 5.00 |
| Insert Width (Decimal Inch) | 0.1969 |
| Tool Block/Toolholder Style | SBN |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (mm) | 60.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3622 |
| Cutting Height (mm) | 24.50 |
| Cutting Height (Decimal Inch) | 0.9646 |
| Insert Corner Radius (Decimal Inch) | 0.0984 |
| Complete Insert Compatibility | GX24-3E500N030-CE4; GX24-3E500N03-CE4; GX24-3E500N03-CF5; GX24-3E500N040-GD3; GX24-3E500N040-UA4; GX24-3E500N040-UF4; GX24-3E500N04-GD3; GX24-3E500N04-GD6; GX24-3E500N04-UD6; GX24-3E500N04-UF4; GX24-3E500N080-UF4; GX24-3E500N08-UF4; GX24-3E500N250-RD4 |
| Complete Tool Block/Toolholder Style Compatibility | SBN12-26K-E; SBN12-26KS-E; SBN16-32-K-E; SBN16-32KS-E; SBN2020-26-K; SBN20-32K-E; SBN20-32KS-E; SBN20-46K-E; SBN2520-32-K; SBN3229-32-K; SBN3229-46-K; SBN4037-46-K |
