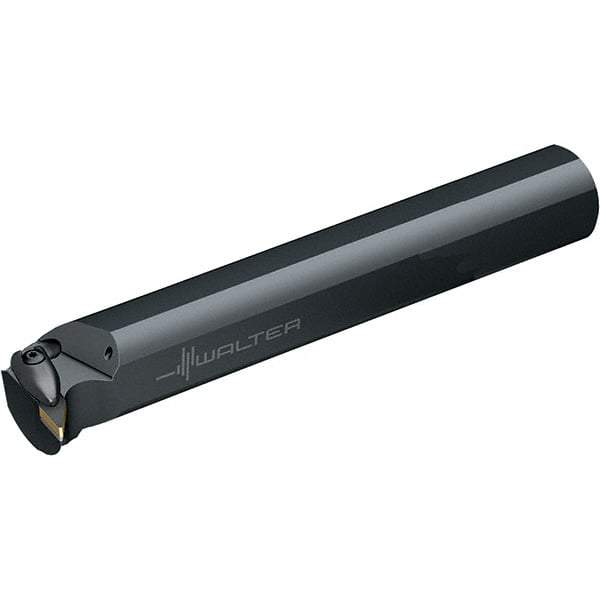

Walter - 50mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, A-DVUN Indexable Boring Bar - VN.. 1604.. Insert, Clamp Holding Method
Item #: 53042230
Brand: Walter
Model #: 5522923
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DVUN |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | VN.. 1604.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | VNGG 160401-SR; VNGG 160402-SR; VNGG 160404-SR; VNGG160404-NFT; VNGG160408-NFT; VNGM 160404-F; VNGM 160408-F; VNGM 160412-F; VNMA 160404; VNMA 160408; VNMA 160412; VNMG 160404-C5; VNMG 160404-FP5; VNMG 160404-M2; VNMG 160404-MP3; VNMG 160404-MP5; VNMG 160 |
| Toolholder Material | Steel |
