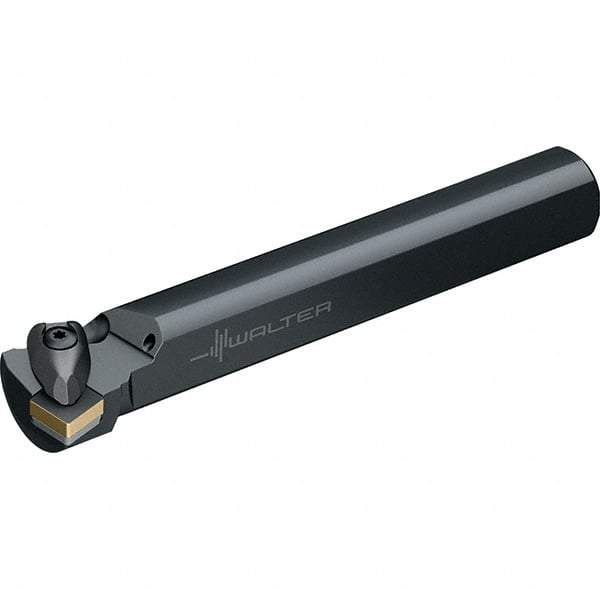

Walter - 32mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, A-DSKN Indexable Boring Bar - SN.. 1204.. Insert, Clamp Holding Method
Item #: 53042156
Brand: Walter
Model #: 5522861
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DSKN |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | SN.. 1204.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | SNMA 120408; SNMA 120408T02020; SNMA 120412; SNMA 120412T02020; SNMA 120416; SNMA 120416T02020; SNMG 120404-FP5; SNMG 120404-MP3; SNMG 120404-NF4; SNMG 120404-NM4; SNMG 120408-FP5; SNMG 120408-M2; SNMG 120408-M4; SNMG 120408-MP3; SNMG 120408-MP5; SNMG 120 |
| Toolholder Material | Steel |
