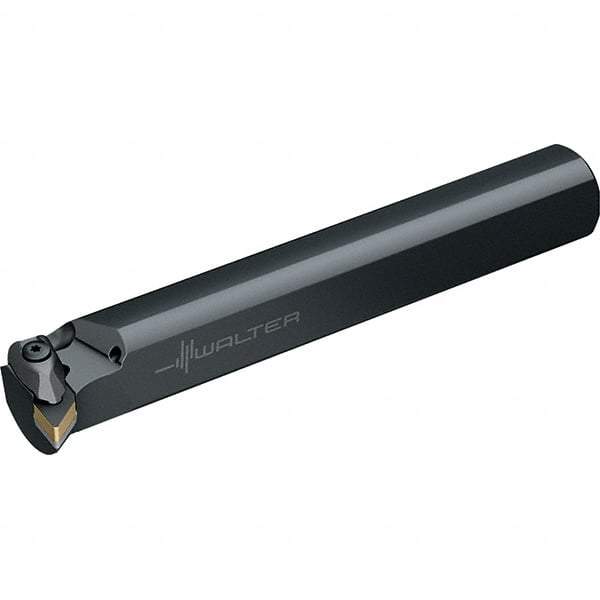

Walter - 40mm Min Bore Diam, 300mm OAL, 32mm Shank Diam, A-DDUN Indexable Boring Bar - DN.. 1506.. Insert, Clamp Holding Method
Item #: 53042099
Brand: Walter
Model #: 5522834
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DDUN |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | DN.. 1506.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | DNGG150604-NFT; DNGG150608-NFT; DNMA 150604-2; DNMA 150608; DNMA 150608-2; DNMA 150608T02020; DNMA 150612; DNMA 150612-2; DNMA 150612T02020; DNMG 150604-FP5; DNMG 150604-MP3; DNMG 150604-MP5; DNMG 150604-NF4; DNMG 150604-NFT; DNMG 150604-NM4; DNMG 150604- |
| Toolholder Material | Steel |
