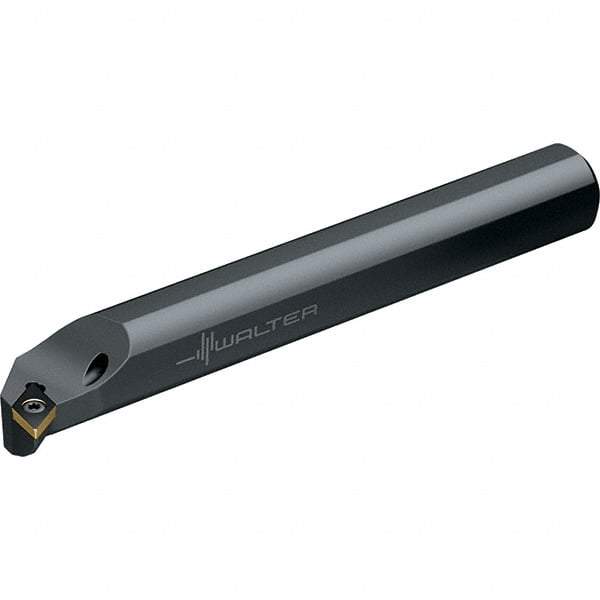

Walter - 15.19mm Min Bore Diam, 152.4mm OAL, 3/8" Shank Diam, E-SDUC Indexable Boring Bar - DC.. 0702.., DC.. 21.5.. Insert, Screw Holding Method
Item #: 53042024
Brand: Walter
Model #: 5364754
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SDUC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 15.19 |
| Minimum Bore Diameter (Decimal Inch) | 0.5980 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Insert Compatibility | DC.. 0702..; DC.. 21.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 9.53 |
| Center to Cutting Edge (Decimal Inch) | 0.3750 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Complete Insert Compatibility | DCGT 070201-PF2; DCGT 070202-1L; DCGT 070202-PF2; DCGT 070202-PM2; DCGT 070204-1L; DCGT 070204-PF2; DCGT 070204-PM2; DCGT21.5.5-PF2; DCGT21.50.5-PM2; DCGT21.50-PF2; DCGT21.51-PF2; DCGT21.51-PM2; DCMT 070202-PF4; DCMT 070204-PF; DCMT 070204-PF4; DCMT 07020 |
| Toolholder Material | Carbide (Shank); Steel (Head) |
