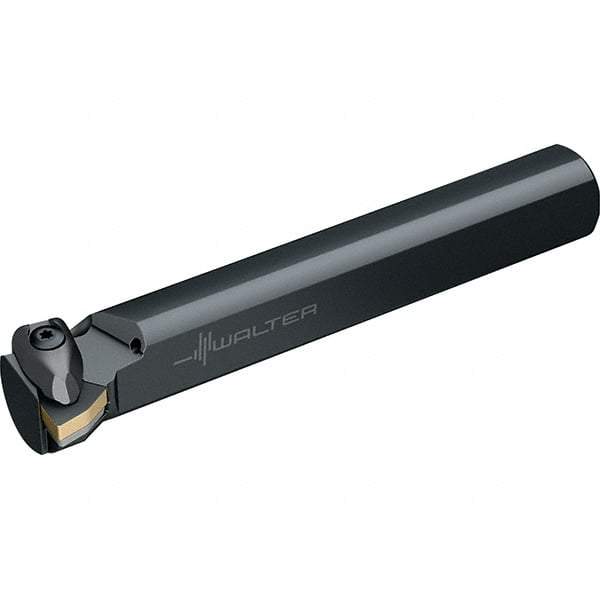

Walter - 2" Min Bore Diam, 12" OAL, 1-1/2" Shank Diam, A-DWLN Indexable Boring Bar - WN.. 0804.., WN.. 43.. Insert, Clamp Holding Method
Item #: 53041927
Brand: Walter
Model #: 5335148
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DWLN |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 2.0000 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | WN.. 0804..; WN.. 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | WNMA 080404; WNMA 080408; WNMA 080408T02020; WNMA 080412; WNMA 080412T02020; WNMA 431; WNMA 432; WNMA 432T02020; WNMA 433; WNMA 433T02020; WNMG 080404-C5; WNMG 080404-F5; WNMG 080404-FP5; WNMG 080404-MP3; WNMG 080404-MP5; WNMG 080404-NF; WNMG 080404-NF4; |
| Toolholder Material | Steel |
