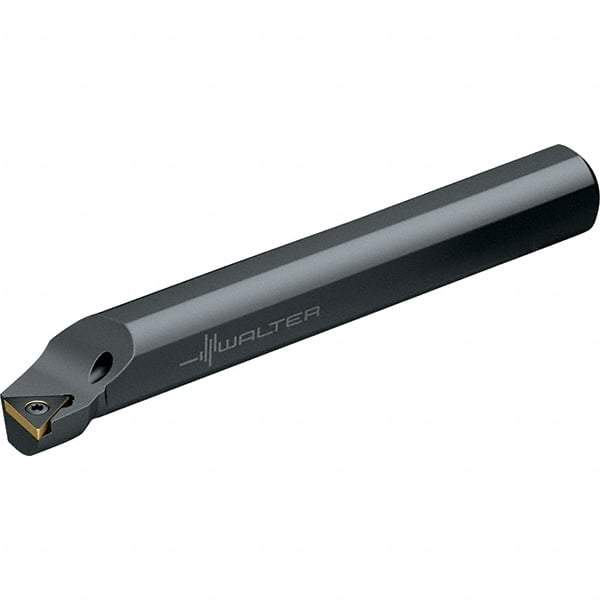

Walter - 0.93" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-STFC Indexable Boring Bar - TC.. 1102.., TC.. 21.5.. Insert, Screw Holding Method
Item #: 53041653
Brand: Walter
Model #: 5204735
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFC |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 0.9300 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | TC.. 1102..; TC.. 21.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Complete Insert Compatibility | TCGT 110201-PF2; TCGT 110201-PM2; TCGT 110202-1L; TCGT 110202-PF2; TCGT 110202-PM2; TCGT 110204-1L; TCGT 110204-PF2; TCGT 110204-PM2; TCGT 110208-PM2; TCGT 21.5.5-PF2; TCGT 21.50.5-1L; TCGT 21.50.5-PM2; TCGT 21.50-PF2; TCGT 21.50-PM2; TCGT 21.51-1L; TCGT |
| Toolholder Material | Steel |
