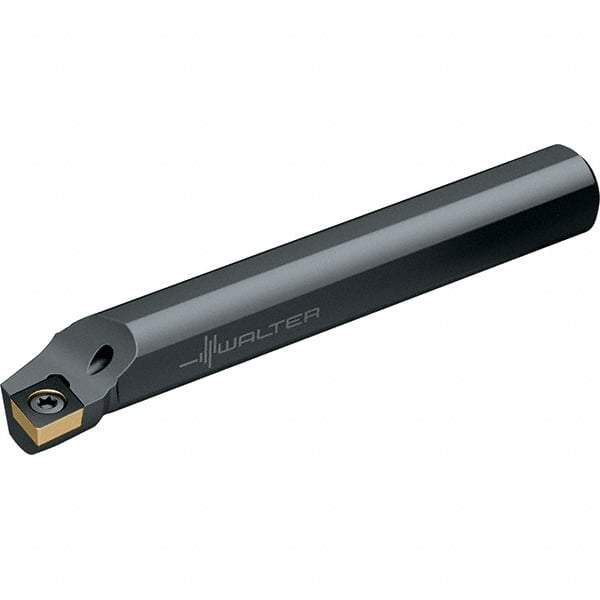

Walter - 23.6mm Min Bore Diam, 254mm OAL, 3/4" Shank Diam, A-SCLC Indexable Boring Bar - CC.. 09T3.., CC.. 32.5.. Insert, Screw Holding Method
Item #: 53041521
Brand: Walter
Model #: 5204716
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 23.60 |
| Minimum Bore Diameter (Decimal Inch) | 0.9290 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 254.00 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | CC.. 09T3..; CC.. 32.5.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 12.70 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | CCGT 09T301-PF2; CCGT 09T301-PM2; CCGT 09T302-1L; CCGT 09T302-PF2; CCGT 09T302-PF5; CCGT 09T302-PM2; CCGT 09T304-1L; CCGT 09T304-PF2; CCGT 09T304-PF5; CCGT 09T304-PM2; CCGT 09T308-1L; CCGT 09T308-PF2; CCGT 09T308-PM2; CCGT 32.5.5-PF5; CCGT 32.50.5-1L; CCG |
| Toolholder Material | Steel |
