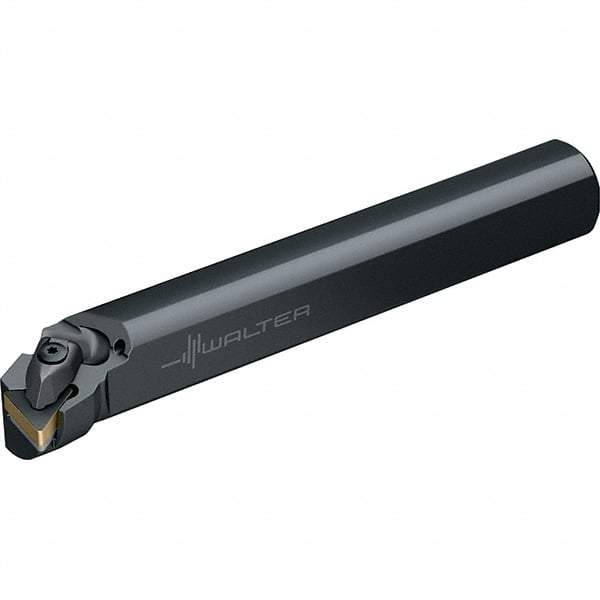

Walter - 40mm Min Bore Diam, 300mm OAL, 32mm Shank Diam, A-DTFN Indexable Boring Bar - TN.. 1604.. Insert, Clamp Holding Method
Item #: 53040812
Brand: Walter
Model #: 5522912
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DTFN |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | TN.. 1604.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | TNMA 160404; TNMA 160408; TNMA 160412; TNMA 160412T02020; TNMA 160416; TNMG 160404-C5; TNMG 160404-F5; TNMG 160404-FP5; TNMG 160404-MP3; TNMG 160404-MP5; TNMG 160404-NF4; TNMG 160404-NM4; TNMG 160404-NM5; TNMG 160404-NMS; TNMG 160404-NMT; TNMG 160408-F5; |
| Toolholder Material | Steel |
