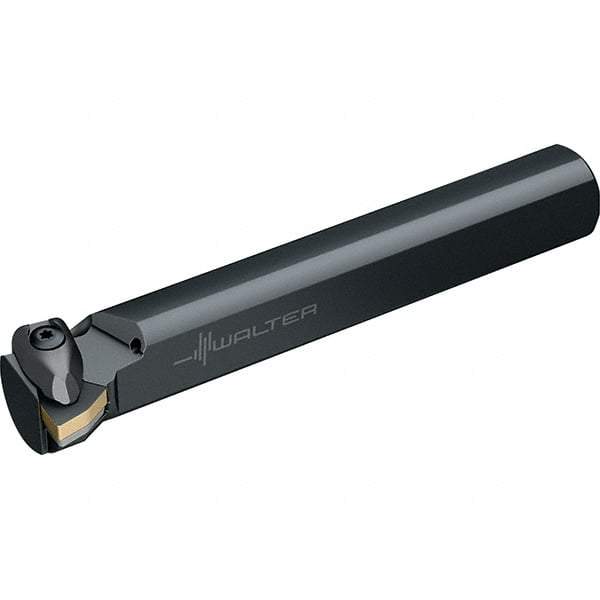

Walter - 32mm Min Bore Diam, 300mm OAL, 25mm Shank Diam, A-DWLN Indexable Boring Bar - WN.. 0804.. Insert, Clamp Holding Method
Item #: 53040754
Brand: Walter
Model #: 5522928
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DWLN |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | WN.. 0804.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | WNMA 080404; WNMA 080408; WNMA 080408T02020; WNMA 080412; WNMA 080412T02020; WNMG 080404-C5; WNMG 080404-F5; WNMG 080404-FP5; WNMG 080404-MP3; WNMG 080404-MP5; WNMG 080404-NF; WNMG 080404-NF4; WNMG 080404-NM4; WNMG 080404-NM5; WNMG 080404-NMS; WNMG 080408 |
| Toolholder Material | Steel |
