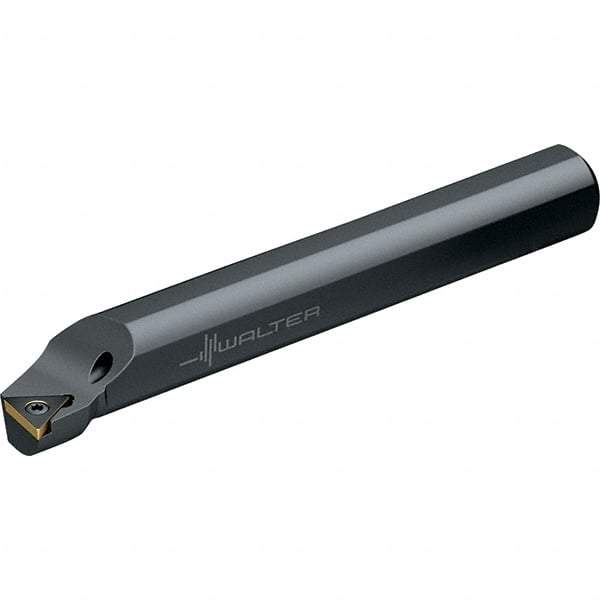

Walter - 13mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, A-STFC Indexable Boring Bar - TC.. 0902.. Insert, Screw Holding Method
Item #: 53040622
Brand: Walter
Model #: 5673637
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 13.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | TC.. 0902.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 7.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 7/32 |
| Insert Inscribed Circle (mm) | 5.56 |
| Insert Inscribed Circle (Decimal Inch) | 0.2188 |
| Complete Insert Compatibility | TCGT 090201-PF2; TCGT 090202-PF2; TCGT 090204-PF2; TCMT 090202-PF4; TCMT 090204-PF4; TCMT 090204-PM5; TCMT 090208-PF4; TCMT 090208-PM5 |
| Toolholder Material | Steel |
