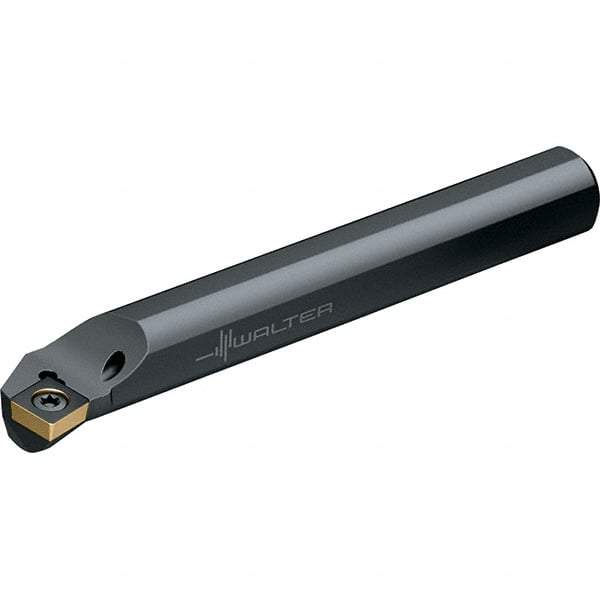

Walter - 25mm Min Bore Diam, 250mm OAL, 20mm Shank Diam, A-SSKC Indexable Boring Bar - SC.. 09T3.. Insert, Screw Holding Method
Item #: 53036760
Brand: Walter
Model #: 5194517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SSKC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | SC.. 09T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | SCGT 09T304-1L; SCGT 09T304-PF2; SCGT 09T304-PM2; SCGT 09T308-1L; SCGT 09T308-PF2; SCGT 09T308-PM2; SCMT 09T304-PF4; SCMT 09T304-PM4; SCMT 09T304-PM5; SCMT 09T304-PS5; SCMT 09T308-PF4; SCMT 09T308-PM4; SCMT 09T308-PM5; SCMT 09T308-PS5; SCMW 09T304; SCMW 0 |
| Toolholder Material | Steel |
