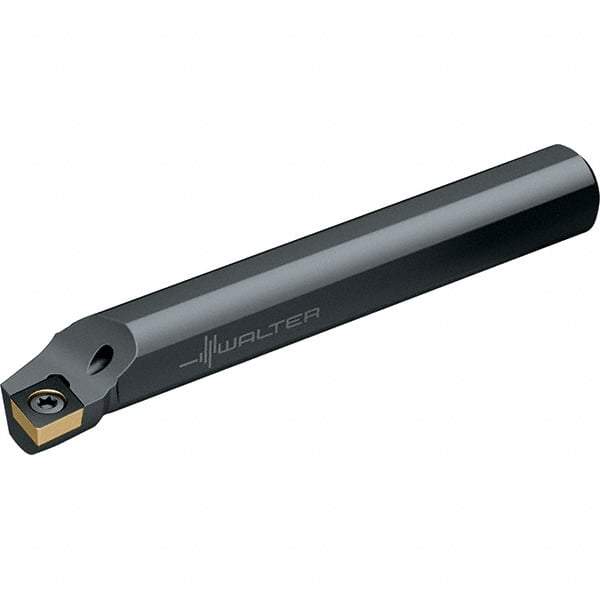

Walter - 25mm Min Bore Diam, 250mm OAL, 20mm Shank Diam, A-SCLC Indexable Boring Bar - CC.. 09T3.. Insert, Screw Holding Method
Item #: 53036679
Brand: Walter
Model #: 5194488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | CC.. 09T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | CCGT 09T301-PF2; CCGT 09T301-PM2; CCGT 09T302-1L; CCGT 09T302-PF2; CCGT 09T302-PF5; CCGT 09T302-PM2; CCGT 09T304-1L; CCGT 09T304-PF2; CCGT 09T304-PF5; CCGT 09T304-PM2; CCGT 09T308-1L; CCGT 09T308-PF2; CCGT 09T308-PM2; CCMT 09T302-PF4; CCMT 09T304-PF; CCMT |
| Toolholder Material | Steel |
