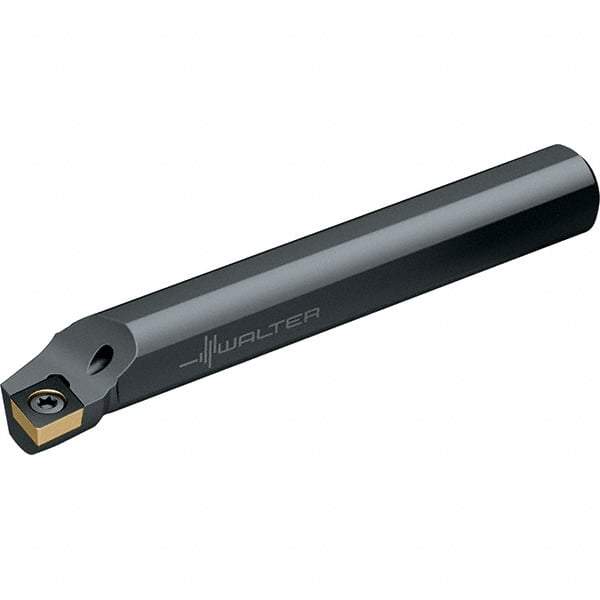

Walter - 16mm Min Bore Diam, 150mm OAL, 12mm Shank Diam, A-SCLC Indexable Boring Bar - CC.. 0602.. Insert, Screw Holding Method
Item #: 53036661
Brand: Walter
Model #: 5194485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | CC.. 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Complete Insert Compatibility | CCGT 060201-PF2; CCGT 060201-PM2; CCGT 060202-1L; CCGT 060202-PF2; CCGT 060202-PF5; CCGT 060202-PM2; CCGT 060204-1L; CCGT 060204-PF2; CCGT 060204-PF5; CCGT 060204-PM2; CCGT 060208-PM2; CCGW 060204-F; CCMT 060202-PF; CCMT 060204-PF; CCMT 060204-PF4; CCMT 0 |
| Toolholder Material | Steel |
