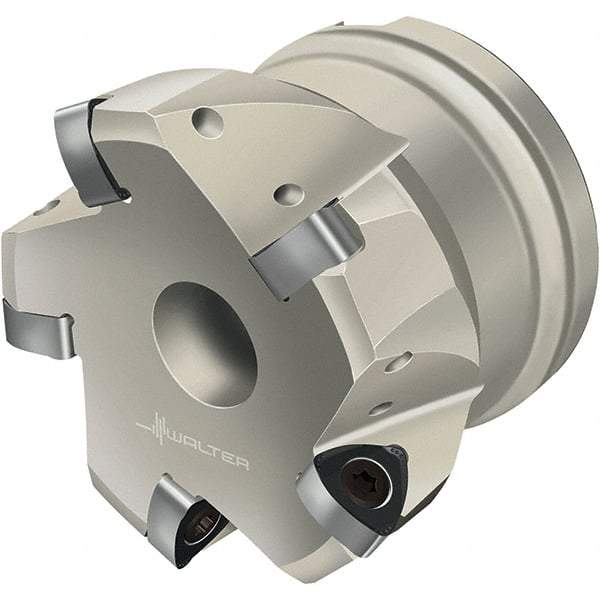

Walter - 100mm Cut Diam, 32mm Arbor Hole, 2mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 6 Inserts, P23696 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Xtra-tec
Item #: 53032835
Brand: Walter
Model #: 5882906
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | P23696 |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | F4030 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 8.00 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | P23696-2.0 |
