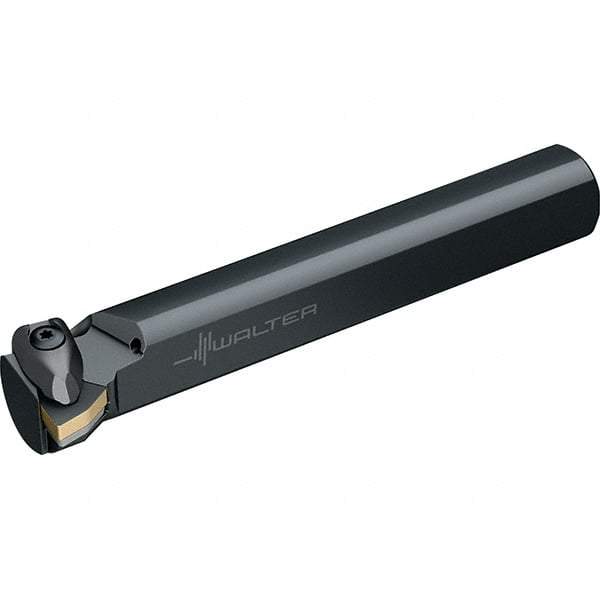

Walter - 1.705" Min Bore Diam, 12" OAL, 1-1/4" Shank Diam, A-DWLN Indexable Boring Bar - WN.. 0604.., WN.. 33.. Insert, Clamp Holding Method
Item #: 53032694
Brand: Walter
Model #: 5097488
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DWLN |
| Series | Walter Turn |
| Minimum Bore Diameter (Decimal Inch) | 1.7050 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | WN.. 0604..; WN.. 33.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | WNMA 060404; WNMA 060408; WNMA 060408T02020; WNMA 060412; WNMA331; WNMA332; WNMA332T02020; WNMA333; WNMG 060404-FP5; WNMG 060404-M2; WNMG 060404-MP3; WNMG 060404-MP5; WNMG 060404-NF; WNMG 060404-NF4; WNMG 060404-NM4; WNMG 060404-NM5; WNMG 060408-FP5; WNMG |
| Toolholder Material | Steel |
