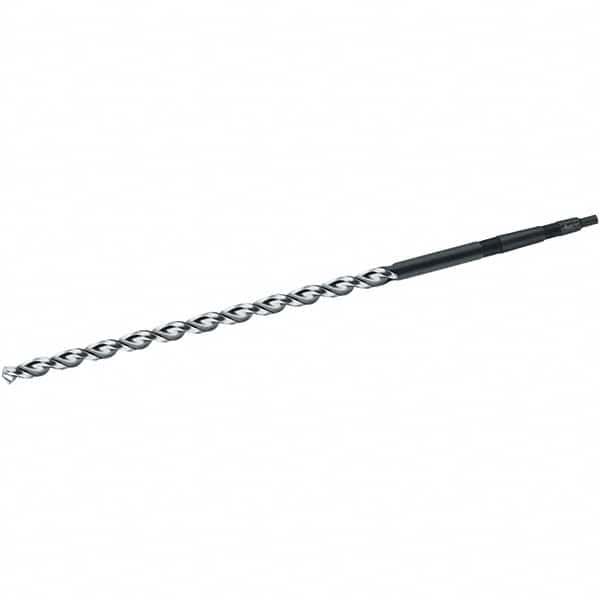

Walter-Titex - 15.5mm, 2MT 130° Point High Speed Steel Taper Shank Drill Bit - Bright/Oxide Finish, 295mm Flute Length, 445mm OAL, Parabolic Flute, Series A4722
Item #: 53008280
Brand: Walter-Titex
Model #: 5066316
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 15.50 |
| Drill Bit Size (Decimal Inch) | 0.6102 |
| Drill Point Angle | 130 |
| Shank Taper Designation | 2MT |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright/Oxide |
| Flute Type | Parabolic |
| Overall Length (mm) | 445.00 |
| Flute Length (mm) | 295.00 |
| Flute Length (Decimal Inch) | 11.6142 |
| Maximum Drilling Depth (Decimal Inch) | 10.98 |
| Cutting Direction | Right Hand |
| Point Type | UFL |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 1870-II; DIN 228-B |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M2 |
| Specification Designation | DIN |
| Series/List | A4722 |
