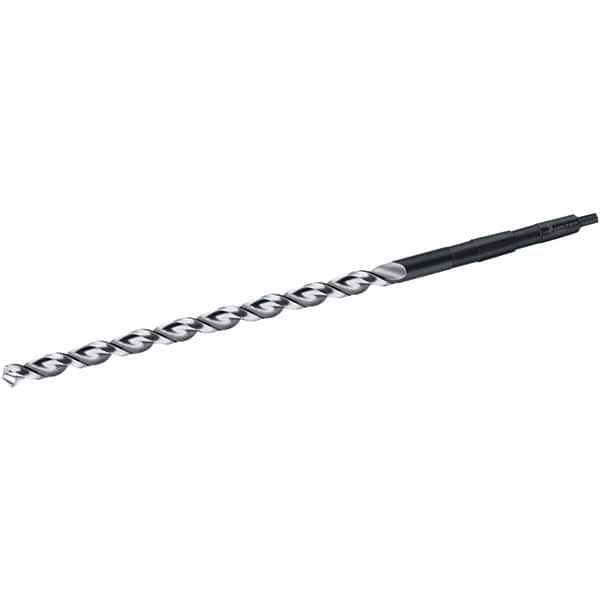

Walter-Titex - 19mm, 2MT 130° Point High Speed Steel Taper Shank Drill Bit - Bright/Oxide Finish, 245mm Flute Length, 370mm OAL, Parabolic Flute, Series A4622
Item #: 53008199
Brand: Walter-Titex
Model #: 5066292
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 19.00 |
| Drill Bit Size (Decimal Inch) | 0.7480 |
| Drill Point Angle | 130 |
| Shank Taper Designation | 2MT |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright/Oxide |
| Flute Type | Parabolic |
| Overall Length (mm) | 370.00 |
| Flute Length (mm) | 245.00 |
| Flute Length (Decimal Inch) | 9.6457 |
| Maximum Drilling Depth (Decimal Inch) | 8.90 |
| Cutting Direction | Right Hand |
| Point Type | UFL |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 1870-I; DIN 228-B |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M2 |
| Specification Designation | DIN |
| Series/List | A4622 |
