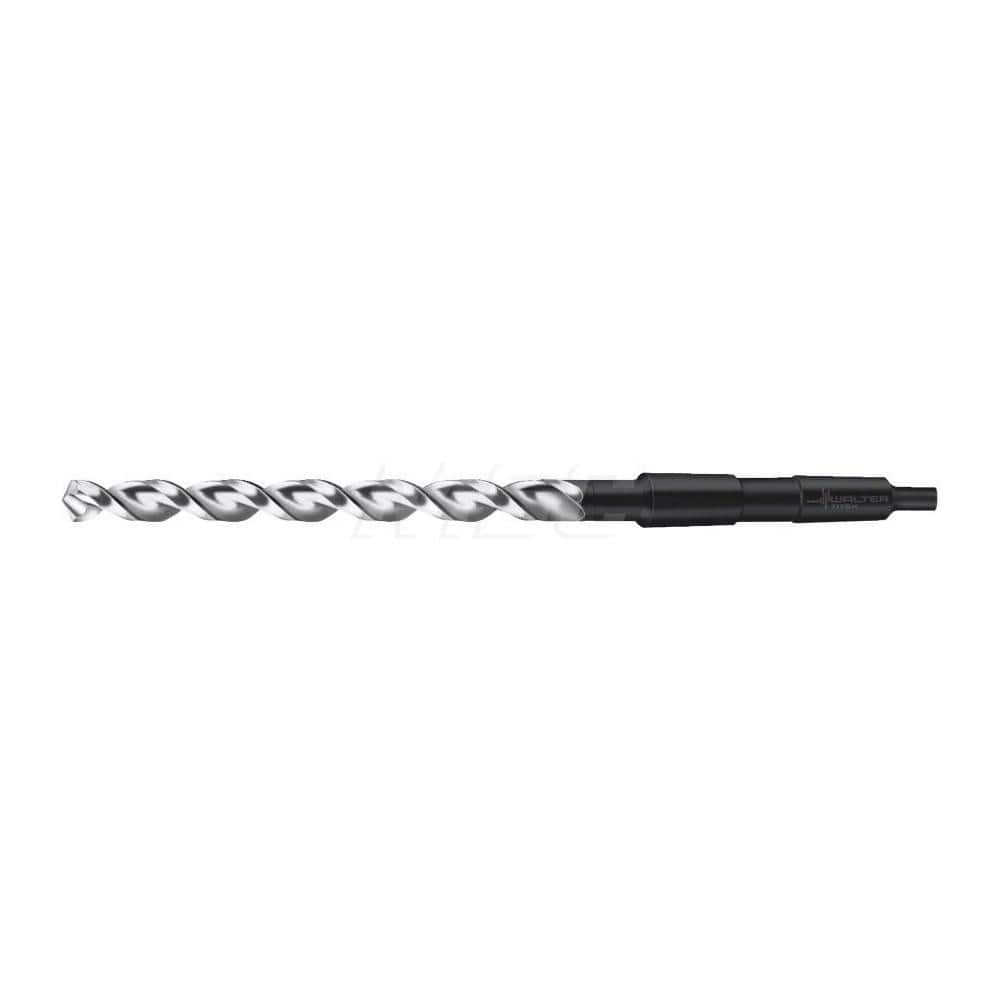

Taper Shank Drill Bit: 0.7087″ Dia, 2MT, 130 °, High Speed Steel Bright/Uncoated & Oxide, 6.4961″ Flute Length, 10.3543″ OAL, UFL Point, Parabolic Flute
Item #: 53008066
Brand: Walter-Titex
Model #: 5066170
Product Specifications
| Drill Bit Size (mm) | 18.00 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 2MT |
| Overall Length (mm) | 263.00 |
| Coating/Finish | Oxide; Bright/Uncoated |
| Flute Type | Parabolic |
| Drill Point Angle | 130 |
| Coolant Through | No |
| Point Type | UFL |
| Flute Length (mm) | 165.00 |
| Drill Bit Size (Decimal Inch) | 0.7087 |
| Flute Length (Decimal Inch) | 6.4961 |
| Maximum Drilling Depth (Decimal Inch) | 5.7900 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 10.3543 |
| Series | A4422 |
| Standards | DIN 341 |
| Tool Application | Through Hole Drilling; Blind Hole; Stack Drilling |
| Web Thinning | Web-Thinned |
| Flute Length x Diamter Ratio | 12xD |
| Drill Bit Diameter Tolerance | h8 |
