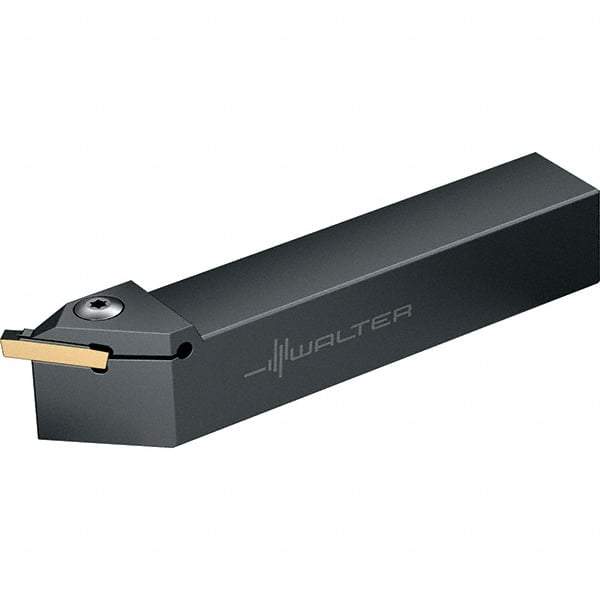

Walter - G1551, External, Right Hand, 6mm Max Depth of Cut, 3 to 6mm Groove Width, Indexable Grooving Tool Holder - GX24.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width
Item #: 53006318
Brand: Walter
Model #: 6022311
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Toolholder Style | G1551 |
| Insert Compatibility | GX24.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Recessing; Threading; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 23.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9134 |
| Head Length (mm) | 33.10 |
| Head Length (Decimal Inch) | 1.3032 |
| Full Radius Insert | Yes |
| Shank Length (mm) | 2.10 |
| Shank Length (Decimal Inch) | 0.0827 |
| Complete Insert Compatibility | GX24-2E300N020-CE4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N150-RD4; GX24-2E300N15-RD4 |
