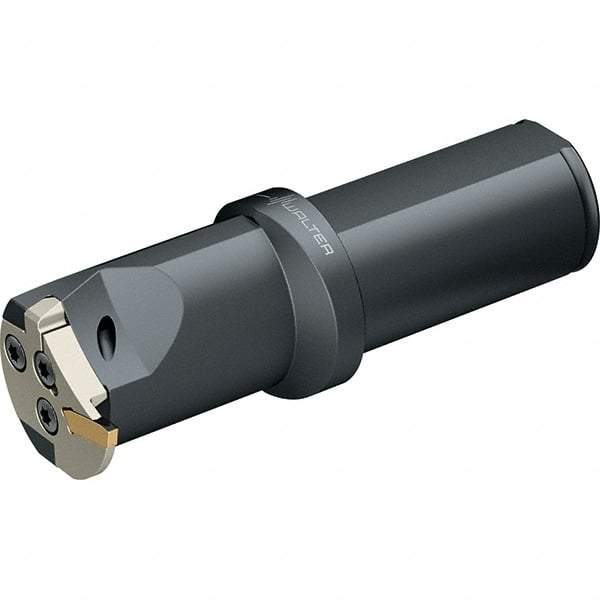

Walter - NCAI, Internal, Right Hand, 19mm Max Depth of Cut, 6 to 6mm Groove Width, Indexable Grooving Tool Holder - GX24-4E.. Insert Compatibility, 50mm Shank Width, 351.2mm OAL, Through Coolant
Item #: 53004313
Brand: Walter
Model #: 5009555
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Maximum Depth of Cut (mm) | 19.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 351.20 |
| Overall Length (Decimal Inch) | 13.8268 |
| Toolholder Style | NCAI |
| Insert Compatibility | GX24-4E.. |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Self Clamp |
| Minimum Hole Diameter (mm) | 60.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.3622 |
| Center to Cutting Edge (mm) | 44.50 |
| Center to Cutting Edge (Decimal Inch) | 1.7520 |
| Head Height (Decimal Inch) | 1.9685 |
| Head Height (mm) | 50.00 |
| Head Length (mm) | 98.20 |
| Head Length (Decimal Inch) | 3.8661 |
| Full Radius Insert | No |
| Shank Length (mm) | 253.00 |
| Shank Length (Decimal Inch) | 9.9606 |
| Complete Insert Compatibility | GX24-4E600N030-CE4; GX24-4E600N03-CE4; GX24-4E600N050-GD3; GX24-4E600N050-UA4; GX24-4E600N050-UF4; GX24-4E600N05-GD3; GX24-4E600N05-GD6; GX24-4E600N05-UD6; GX24-4E600N05-UF4; GX24-4E600N080-UF4; GX24-4E600N08-UF4; GX24-4E600N300-RD4; GX24-4E600N30-RD4 |
