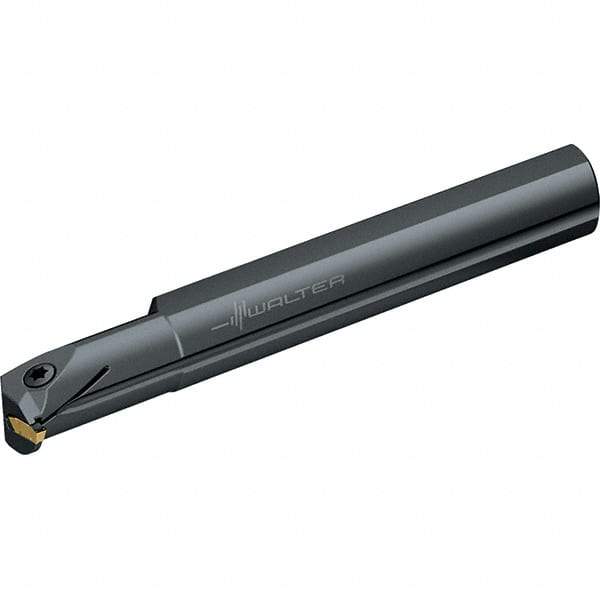

Walter - I 12, Internal, Left Hand, 3mm Max Depth of Cut, 2 to 2.5mm Groove Width, Indexable Grooving Tool Holder - GX09-1.. Insert Compatibility, 16mm Shank Width, 150.7mm OAL
Item #: 53004172
Brand: Walter
Model #: 5009526
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 150.70 |
| Overall Length (Decimal Inch) | 5.9331 |
| Toolholder Style | I 12 |
| Insert Compatibility | GX09-1.. |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (mm) | 16.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.6299 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Head Length (mm) | 29.40 |
| Head Length (Decimal Inch) | 1.1575 |
| Full Radius Insert | No |
| Complete Insert Compatibility | GX09-1E200N02-GD3; GX09-1E200N02-UF4; GX09-1E250N02-GD3; GX09-1S1.00R/L; GX09-1S1.20R/L; GX09-1S1.40R/L; GX09-1S1.70R/L; GX09-1S1.95N; GX09-1S2.25N |
