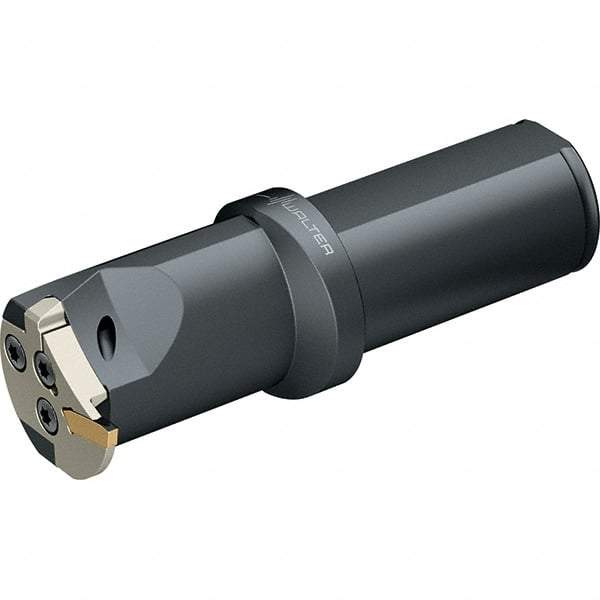

Walter - NCAI, Internal, Right Hand, 10mm Max Depth of Cut, 3 to 3mm Groove Width, Indexable Grooving Tool Holder - GX16-2E.. Insert Compatibility, 50mm Shank Width, 350.5mm OAL, Through Coolant
Item #: 53004040
Brand: Walter
Model #: 5009495
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 350.50 |
| Overall Length (Decimal Inch) | 13.7992 |
| Toolholder Style | NCAI |
| Insert Compatibility | GX16-2E.. |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Self Clamp |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Center to Cutting Edge (mm) | 35.50 |
| Center to Cutting Edge (Decimal Inch) | 1.3976 |
| Head Height (Decimal Inch) | 1.9685 |
| Head Height (mm) | 50.00 |
| Head Length (mm) | 99.00 |
| Head Length (Decimal Inch) | 3.8976 |
| Full Radius Insert | No |
| Shank Length (mm) | 251.50 |
| Shank Length (Decimal Inch) | 9.9016 |
| Complete Insert Compatibility | GX16-2E300N02-CE4; GX16-2E300N02-CF5; GX16-2E300N02-CF6; GX16-2E300N030-GD3; GX16-2E300N030-UA4; GX16-2E300N030-UF4; GX16-2E300N03-GD3; GX16-2E300N03-GD6; GX16-2E300N03-UD6; GX16-2E300N03-UF4; GX16-2E300R/L6-CE4; GX16-2E300R/L6-CF5; GX16-2E300R/L6-CF6; GX |
